Ultrasonic wire embedding device, also known as smart card antenna welding machine, smart card spot welding machine, smart card antenna implantation machine, etc., is a professional equipment used for smart card wire embedding, applied to sheet welding positioning and antenna implantation, and is one of the important applications in the RFID field in recent years. Hangzhou Chenggong Ultrasonic is a national high-tech enterprise specializing in the manufacturing and research and development of ultrasonic equipment. It has many years of experience in ultrasonic welding applications and can provide solutions for buried wire welding of various ID smart cards.

A regular ultrasonic wire embedding device, with the wear of the wire embedding head (welding head), the frequency is inevitably constantly changing (product size determines product frequency). When the frequency changes to a certain extent, it is difficult for the driving power supply to find the frequency of the wire embedding head. Our company has upgraded the CNC ultrasonic wire embedding device in terms of matching issues. Even if there is some wear on the wire embedding head, the driving power generator can quickly search and accurately find the frequency of the wire embedding head, ensuring the stable operation of the entire ultrasonic system. The service life of the welding head will be extended by 2-3 times, saving losses for the majority of users. Compared to similar products on the market, the power has increased by 30%, and the problem of matching the driving power supply with the buried wire head for heating has been improved during long-term operation.

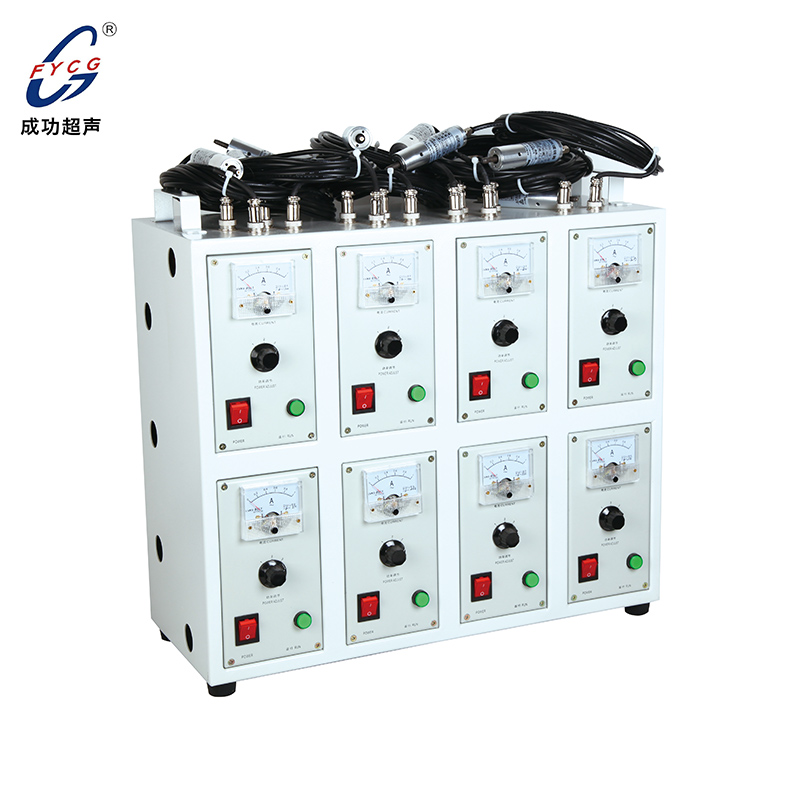

Ultrasonic buried wire standard machine (60kHz eight in one or ten in one)

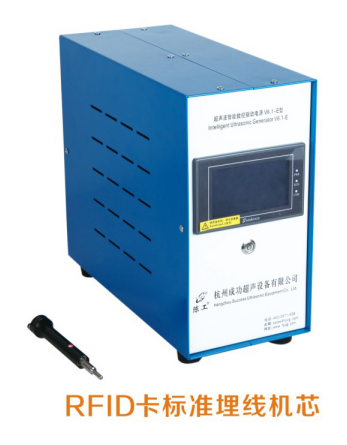

RFID card standard buried wire core

Main characteristics

Installation method: Combination cabinet form, can control eight or ten buried wire heads to work simultaneously

Control method: Multi segment point energy fine-tuning, external control, simpler operation

Energy regulation: 60-100%, power adjustable in three levels, high and low energy switching

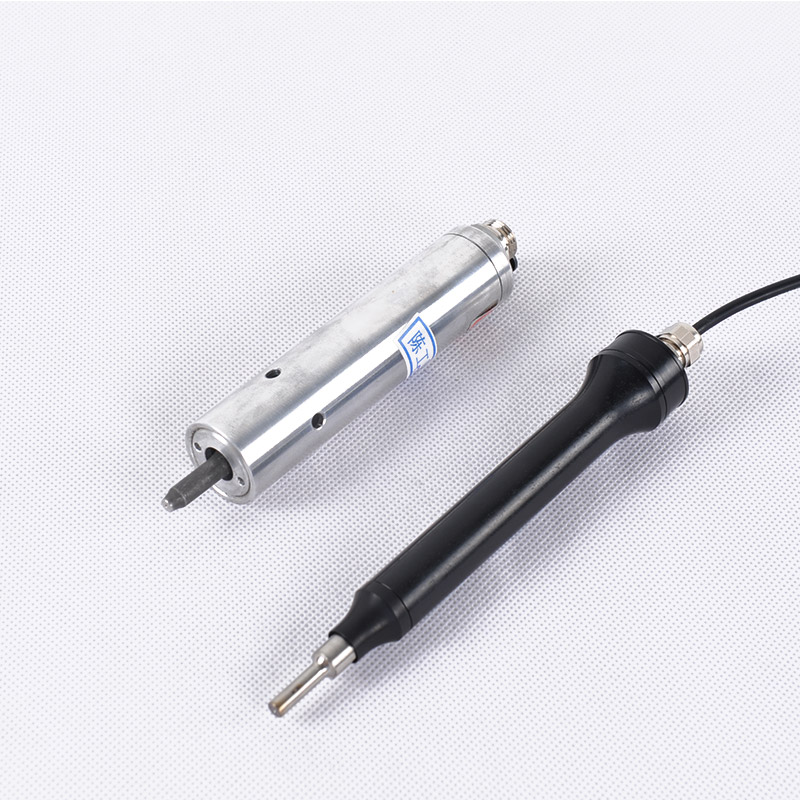

◆ Wire embedding head: using wear-resistant tool head, with a wire embedding distance of 20000 meters

Product appearance: The body design is lightweight, beautiful and durable, with good heat dissipation

◆ Stability: 24-hour operation, uniform energy output

◆ Purpose: High energy mode is suitable for embedding wires on the outer ring of smart cards, while low energy mode is suitable for snake shaped embedding wires on chips

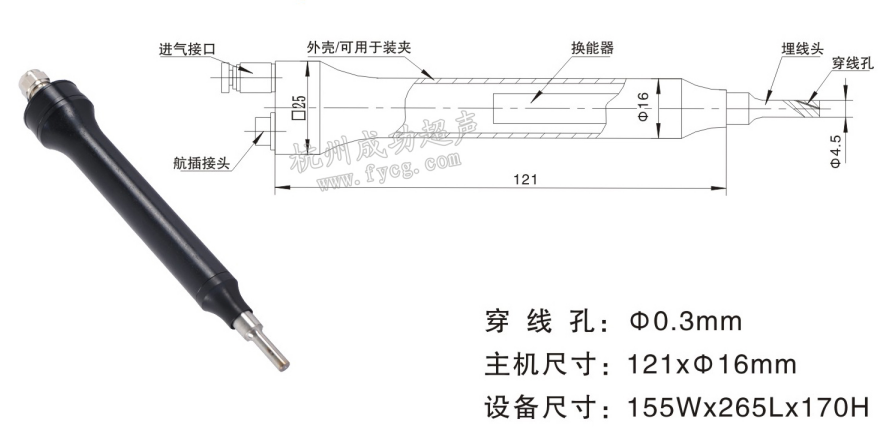

Sketch Map

70k ultrasonic semi CNC buried wire device

First choice for high-speed smart card buried wire

Main characteristics

Intelligent frequency search: automatic frequency adaptation function, extending the service life of the buried wire head

◆ Product appearance: The body is lightweight, beautiful and durable, with good heat dissipation performance

◆ Stability: 24-hour operation, stable energy output

◆ Purpose: Suitable for high-speed buried wire applications, with a buried wire speed twice that of 60K equipment

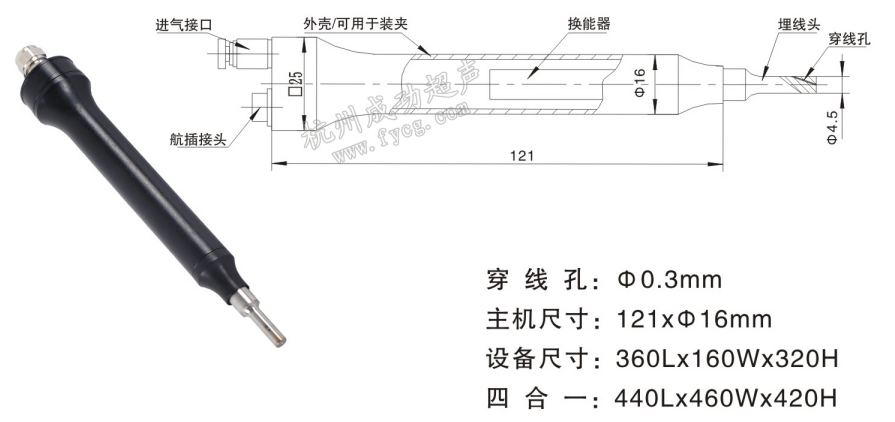

Sketch Map

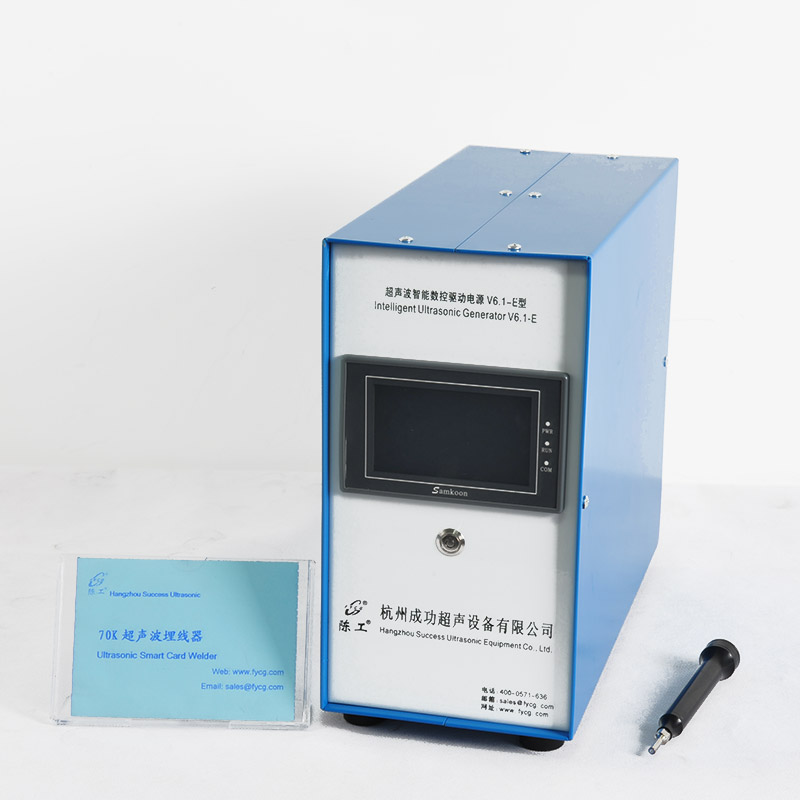

70k ultrasonic fully CNC buried wire device

Full specification smart card high-speed buried wire equipment

Main characteristics

Intelligent frequency search: automatic frequency adaptation function, extending the service life of the buried wire head.

Control method: Touch screen control or external PLC control, easier to operate.

Energy adjustment: 20% -100% energy can be continuously adjusted online, suitable for all specifications of smart card buried wire applications

Product appearance: The body design is lightweight, beautiful and durable, with good heat dissipation performance.

Stability: 24-hour operation, uniform energy output.

◆ Purpose: Suitable for high-speed buried wire applications, with a buried wire speed twice that of 60K equipment

Sketch Map
